Pricing
Our Price £5500.00
Offer £4950.00
Test ride model available

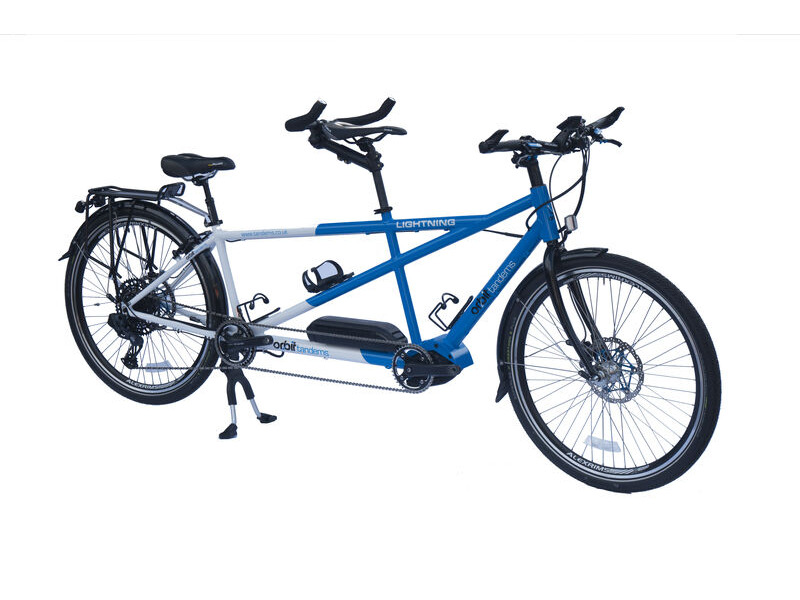

The Lightning Bosch Performance Line CX Smart, is the newest addition to the Orbit electric assist range.

The frames are arriving in January 2024, and build time will be about 2 weeks.

Built using a lightweight aluminium frame, the tandem uses the Bosch Perfomance Line CX 250W motor and comes with a 545wh battery. At an extra cost a powermore battery will be available which gives a further 250wh of range.

Battery weighs 3.5kg, and takes 4 hours for a full charge, however, it is 80% charged after the initial 2 1/2 hours.

Range of course depends upon rider weight, wind, tyre selection & altitude gain, but it can be as much as 70 miles per charge.

The 250W motor is the highest output system that is road legal in the UK, giving up to 85Nm of torque.

This type of electric assist is called a mid-drive system, the engine runs through the gears, and correct use of the gears when climbing make the system really efficient, and allows a light weight motor to be used whilst still giving out a great amount of torque, which is needed for pedalling up the hills.

Built in North Yorkshire, and finished with top quality components including the new Bosch Smart system with a Kiox 300 controller.

Wheels size 700c.
Specifications
Ask Us
Reviews
Related
Options 19/15" Blue/white
20/16" Blue/white
22/18" Blue/white
Description Comes with 545wh battery
Frame Orbit lightweight aluminium
Forks Orbit full chromoly steel disc
Front Derailleur None
Rear Derailleur Shimano SLX 12 11 speed
Shifters Shimano SLX 12 speed right hand shift lever
Chainset Orbit 170mm crank length with Bosch Performance Line CX motor front
Orbit 170mm crank length 42 tooth rear
Bottom Bracket eccentric & square taper
Chain KMC nickel plated 160 link front
Shimano 12 speed rear
Cassette Sunrace 12 speed 11/51
Front Brake TRP Spyke cable pull disc brake, with 203mm rotor
Rear Brake TRP Spyke cable pull disc brake, with 203mm rotor
3rd brake Shimano V brake, controlled from the front handlebars with Shimano friction lever
Brake Levers Shimano
Front Hub Orbit tandem large flange, cartridge bearing, 6 bolt disc
Rear Hub Orbit tandem large flange, cartridge bearing, 6 bolt disc, 145mm OLD
Rims Alex G6000 deep section aero
Spokes Sapim Strong butted stainless
Tyres Schwalbe Marathon 700 x 35, 38 or 47 e-plus
Headset Tange 1 1/8", reinforced bottom cup with stainless bearings
Stem Satori 31.8mm ahead front, Orbit adjustable, 160mm to 200mm rear
Handlebars Satori black riser, 31.8 clamp size front, Black alloy stoker bars, 25.4 clamp size, 49cm external width
4.5cm stoker riser rear
Saddle Velo plush comfort touring
Seatpost Black alloy, 400mm x 27.2 front, Black Satori Elegance suspension 40mm travel rear
Grips Wave ergo lock-on with integrated bar ends front, Velo black cork bar tape with under bar gel rear
Included Pannier rack 3 leg rack
2 X bottle cages
Mudgards with stainless fittings
Pedals Alloy touring with strapless toe cups
Optional Extras Prop stand now included

As with any product, the specification is subject to change without prior notification. You are advised to confirm current specification before buying.
